LED Edge 40W PMMA
LoginLED Edge
High quality. No Flickering. High quality LED Driver – 50 000h PMMA LGP – without yellowing. Direct replacement for luminaires with fluorescent lamps. Suitable for recessed ceiling systems with a grid size of 600 x 600. Suitable for suspended and recessed mountingmm and 1200 x 300 mm. Suitable for suspended and recessed mounting. Easy and quick installation. Energy savings of up to 70%. Quality in accordance to all EU standards and directives. Energy Efficiency Class – E. EU Made Product. Standards – EMC. LVD, CE.
Office lighting, Schools, Commercial areas, Workshops, Hospitals
*** Luminous guaranteed at 25 °ambient temperature
*** Option for Emergency kit up to 3 hours
*** Life and Guarantee depend on the diffuser as all drivers have a life of over 50,000 hours
*** Тhe given light parameters are for colortemperature 4000K
ELECTRICAL CHARACTERISTICS
Supply voltage
200-240VAC, optional 100-240VAC
Frequency
50/60Hz
Power factor
>0.95
LIGHTING CHARACTERISTICS
Efficiency
PMMA
Color rendering index (CRI)
>80
Flicker
Flicker free
Color temperature (CCT)
3000K/4000K/6500K
Note
120°/ UGR<19 on request
PROTECTION AND CONSTRUCTION
Ingress protection
IP40 (Below)
Safety class
Class II
MOUNTING VERSION
Surface
With frame
Suspended
yes
Recessed
yes
WARRANTY CONDITIONS
Lifespan
50 000 h
Warranty
3 years
Ambient temperature
-10 ~40°C
Storage temperature
-20 ~60°C
STANDARDS
Harmonics
EN 61000-3-2
EMC Immunity
EN 61547
Conducted Emission Test
EN 55015
Luminaires
ЕN 60598-1
LED Luminaire performance
ЕN 62722-2-1
Photobiological safety
EN 62471
Description
Description
LED Edge
High quality. No Flickering. High quality LED Driver – 50 000h PMMA LGP – without yellowing. Direct replacement for luminaires with fluorescent lamps. Suitable for recessed ceiling systems with a grid size of 600 x 600. Suitable for suspended and recessed mountingmm and 1200 x 300 mm. Suitable for suspended and recessed mounting. Easy and quick installation. Energy savings of up to 70%. Quality in accordance to all EU standards and directives. Energy Efficiency Class – E. EU Made Product. Standards – EMC. LVD, CE.
Office lighting, Schools, Commercial areas, Workshops, Hospitals
*** Luminous guaranteed at 25 °ambient temperature
*** Option for Emergency kit up to 3 hours
*** Life and Guarantee depend on the diffuser as all drivers have a life of over 50,000 hours
*** Тhe given light parameters are for colortemperature 4000K
Additional information
Additional information
| TECHNICAL CHARACTERISTICS | Electrical characteristics: Supply voltage: 100-277VAC Frequency: 50/60Hz Max. continuous operating voltage: 280VAC 50/60Hz Uc (L-N, LN-GND): up to 280VAC Working conditions Operating ambient temperature (Ta): -30~70°C Highest temperature point (Tc): 80°C Storage conditions: -30~80°C Relative humidity: 5%~85% Non-condensing Protection Protection mode: Diff. mode & Comm. mode Type of surge protection device according IEC/EN 61643-11: T2, T3, T2&T3 Ingress protection: IP 20, IP67 Power grids: TNC, TNC-S, TNS, TT Max. voltage protection at In&Imax Up(L-N)/(LN-GND): 2kV Insulation Class: Class I, Class II Connections and body Wiring: 3 wires x 16AWG, 5 wires x 16AWG, Terminal block & PE/GND Fixing screw type: M8x10 Material of body: Plastic |
|---|---|
| Luminous efficiency | 100lm/W 3000K, 100lm/W UGR 3000K, 100lm/W 4000K, 100lm/W UGR 4000K, D312 100lm/W UGR 4000K, 100lm/W 6500K, 100lm/W UGR 6500K |
Technical Specifications
ELECTRICAL CHARACTERISTICS
Supply voltage
200-240VAC, optional 100-240VAC
Frequency
50/60Hz
Power factor
>0.95
LIGHTING CHARACTERISTICS
Efficiency
PMMA
Color rendering index (CRI)
>80
Flicker
Flicker free
Color temperature (CCT)
3000K/4000K/6500K
Note
120°/ UGR<19 on request
PROTECTION AND CONSTRUCTION
Ingress protection
IP40 (Below)
Safety class
Class II
MOUNTING VERSION
Surface
With frame
Suspended
yes
Recessed
yes
WARRANTY CONDITIONS
Lifespan
50 000 h
Warranty
3 years
Ambient temperature
-10 ~40°C
Storage temperature
-20 ~60°C
STANDARDS
Harmonics
EN 61000-3-2
EMC Immunity
EN 61547
Conducted Emission Test
EN 55015
Luminaires
ЕN 60598-1
LED Luminaire performance
ЕN 62722-2-1
Photobiological safety
EN 62471

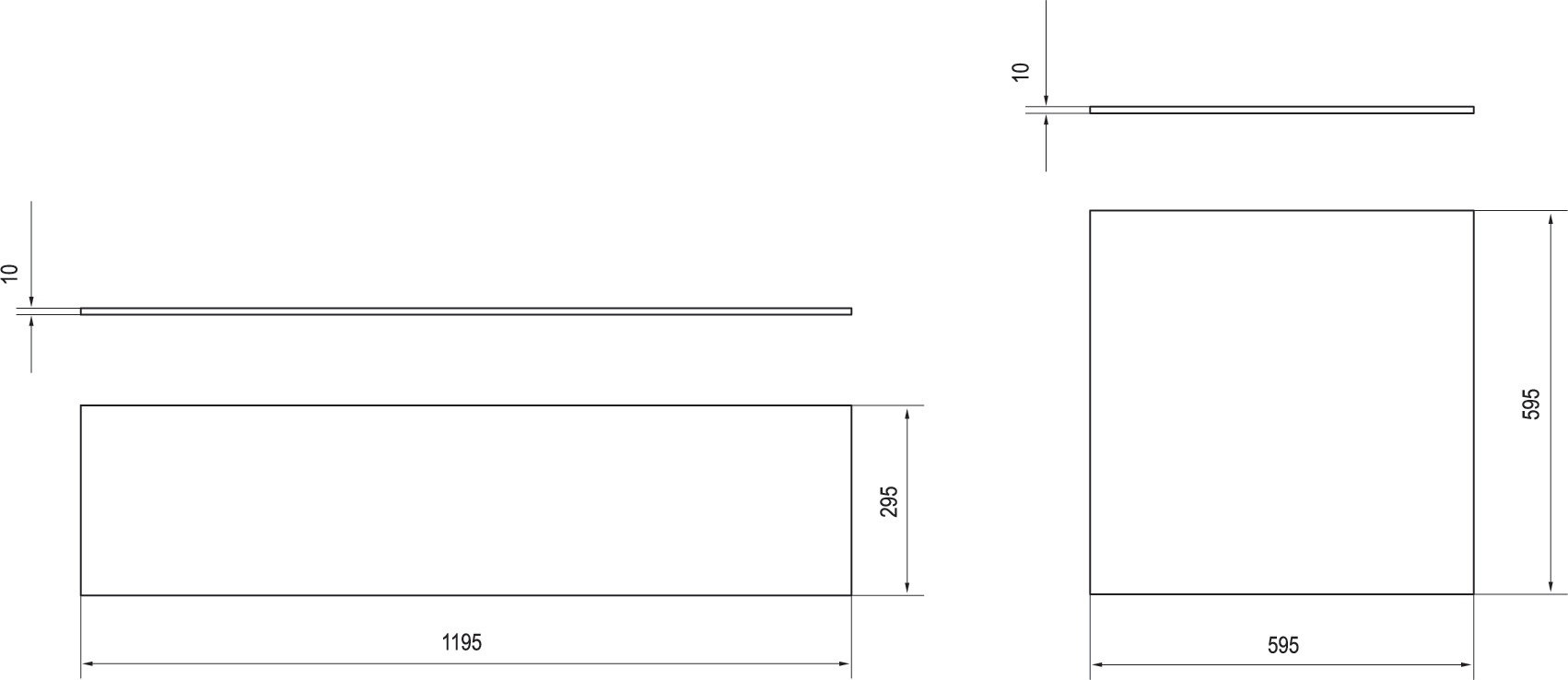

Diagrams & Pictures
