CV LED Power Supply PF0.5 12V
LoginDesigned to power 12/24VDC LED modules, to operate lighting systems which have multiple LED modules connected in parallel. Independent usage.
CV Power Supply PF 0.50 is compatible
ELECTRICAL CHARACTERISTICS
Supply voltage
220-240VAC
Frequency
50/60Hz
Power factor
≥0.50
LIGHTING CHARACTERISTICS
Efficiency
>90%
Color rendering index (CRI)
ـــــــــــــــــــــ
Flicker
ـــــــــــــــــــــ
Color temperature (CCT)
ـــــــــــــــــــــ
Note
ـــــــــــــــــــــ
PROTECTION AND CONSTRUCTION
Ingress protection
IP67 design for outdoor installations
Safety class
Class I
MOUNTING VERSION
Surface
ـــــــــــــــــــــ
Suspended
yes
Recessed
yes
WARRANTY CONDITIONS
Lifespan
30 000 h (PF>0.50)
Warranty
3 years distributional
Ambient temperature
-20 ~ 50°C
Storage temperature
85°C
STANDARDS
Harmonics
ـــــــــــــــــــــ
EMC Immunity
ـــــــــــــــــــــ
Conducted Emission Test
ـــــــــــــــــــــ
Luminaires
ـــــــــــــــــــــ
LED Luminaire performance
ـــــــــــــــــــــ
Photobiological safety
ـــــــــــــــــــــ
Description
Description
CV Power Supply PF 0.50
Designed to power 12/24VDC LED modules, to operate lighting systems which have multiple LED modules connected in parallel. Independent usage.
*** Designed to power 12/24VDC LED Modules
*** Constant voltage LED Power Supplies are designed to operate lighting systems which have multiple LED Modules connected in parallel
*** Independent usage
Additional information
Additional information
| TECHNICAL CHARACTERISTICS | Electrical characteristics: Supply voltage: 100-277VAC Frequency: 50/60Hz Max. continuous operating voltage: 280VAC 50/60Hz Uc (L-N, LN-GND): up to 280VAC Working conditions Operating ambient temperature (Ta): -30~70°C Highest temperature point (Tc): 80°C Storage conditions: -30~80°C Relative humidity: 5%~85% Non-condensing Protection Protection mode: Diff. mode & Comm. mode Type of surge protection device according IEC/EN 61643-11: T2, T3, T2&T3 Ingress protection: IP 20, IP67 Power grids: TNC, TNC-S, TNS, TT Max. voltage protection at In&Imax Up(L-N)/(LN-GND): 2kV Insulation Class: Class I, Class II Connections and body Wiring: 3 wires x 16AWG, 5 wires x 16AWG, Terminal block & PE/GND Fixing screw type: M8x10 Material of body: Plastic |
|---|---|
| Luminous efficiency | 12V 60W 5.00A, 12V 100W 8.33A, 12V 150W 12.50A, 24V 60W 2.50A, 24V 100W 4.17A, 24V 150Wpf 6.25A |
Technical Specifications
ELECTRICAL CHARACTERISTICS
Supply voltage
220-240VAC
Frequency
50/60Hz
Power factor
≥0.50
LIGHTING CHARACTERISTICS
Efficiency
>90%
Color rendering index (CRI)
ـــــــــــــــــــــ
Flicker
ـــــــــــــــــــــ
Color temperature (CCT)
ـــــــــــــــــــــ
Note
ـــــــــــــــــــــ
PROTECTION AND CONSTRUCTION
Ingress protection
IP67 design for outdoor installations
Safety class
Class I
MOUNTING VERSION
Surface
ـــــــــــــــــــــ
Suspended
yes
Recessed
yes
WARRANTY CONDITIONS
Lifespan
30 000 h (PF>0.50)
Warranty
3 years distributional
Ambient temperature
-20 ~ 50°C
Storage temperature
85°C
STANDARDS
Harmonics
ـــــــــــــــــــــ
EMC Immunity
ـــــــــــــــــــــ
Conducted Emission Test
ـــــــــــــــــــــ
Luminaires
ـــــــــــــــــــــ
LED Luminaire performance
ـــــــــــــــــــــ
Photobiological safety
ـــــــــــــــــــــ

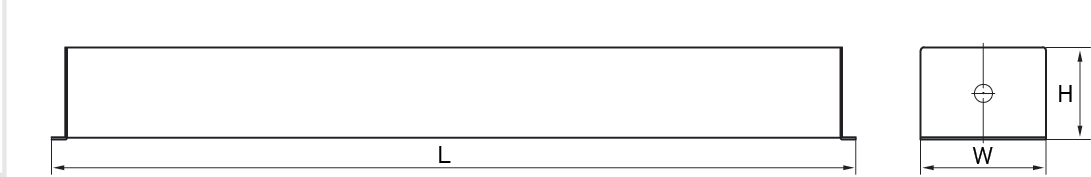

Diagrams & Pictures
