LED Glow Economy 36W D312 120lm/W 6500K
LoginLED Glow Economy
Light distributed directly. Using PMMA lens, so lighting effect is uniform and soft High quality. No Flickering. Driver outside the body. Option for built-in and surface mounting. Cheaper price compared to other designs. No LGP. Quality in accordance to all EU standards and directives Energy Efficiency Class – C, D. EU Made Product.
Office, lighting, Schools, Commercial areas, Workshops, Hospitals
*** Luminous guaranteed at 25 °ambient temperature
*** Option for Emergency kit up to 3 hours
*** Тhe given light parameters are for colortemperature 4000K
ELECTRICAL CHARACTERISTICS
Supply voltage
220-240VAC, WW 100-240VAC
Frequency
50/60Hz
Power factor
>0.95
LIGHTING CHARACTERISTICS
Efficiency
120lm/W
Color rendering index (CRI)
>80, >85, >90
Flicker
Flicker free
Color temperature (CCT)
3000K/4000K/6500K
Note
PS/UGR<19 on request
PROTECTION AND CONSTRUCTION
Ingress protection
IP40
Safety class
Class II
MOUNTING VERSION
Surface
With frame
Suspended
yes
Recessed
yes
WARRANTY CONDITIONS
Lifespan
50 000 h
Warranty
3 years
Ambient temperature
-10 ~40°C
Storage temperature
-20 ~60°C
STANDARDS
Harmonics
EN 61000-3-2
EMC Immunity
EN 61547
Conducted Emission Test
EN 55015
Luminaires
ЕN 60598-1
LED Luminaire performance
ЕN 62722-2-1
Photobiological safety
EN 62471
Description
Description
LED Glow Economy
Light distributed directly. Using PMMA lens, so lighting effect is uniform and soft High quality. No Flickering. Driver outside the body. Option for built-in and surface mounting. Cheaper price compared to other designs. No LGP. Quality in accordance to all EU standards and directives Energy Efficiency Class – C, D. EU Made Product.
Office, lighting, Schools, Commercial areas, Workshops, Hospitals
*** Luminous guaranteed at 25 °ambient temperature
*** Option for Emergency kit up to 3 hours
*** Тhe given light parameters are for colortemperature 4000K
Additional information
Additional information
| TECHNICAL CHARACTERISTICS | Electrical characteristics: Supply voltage: 100-277VAC Frequency: 50/60Hz Max. continuous operating voltage: 280VAC 50/60Hz Uc (L-N, LN-GND): up to 280VAC Working conditions Operating ambient temperature (Ta): -30~70°C Highest temperature point (Tc): 80°C Storage conditions: -30~80°C Relative humidity: 5%~85% Non-condensing Protection Protection mode: Diff. mode & Comm. mode Type of surge protection device according IEC/EN 61643-11: T2, T3, T2&T3 Ingress protection: IP 20, IP67 Power grids: TNC, TNC-S, TNS, TT Max. voltage protection at In&Imax Up(L-N)/(LN-GND): 2kV Insulation Class: Class I, Class II Connections and body Wiring: 3 wires x 16AWG, 5 wires x 16AWG, Terminal block & PE/GND Fixing screw type: M8x10 Material of body: Plastic |
|---|
Technical Specifications
ELECTRICAL CHARACTERISTICS
Supply voltage
220-240VAC, WW 100-240VAC
Frequency
50/60Hz
Power factor
>0.95
LIGHTING CHARACTERISTICS
Efficiency
120lm/W
Color rendering index (CRI)
>80, >85, >90
Flicker
Flicker free
Color temperature (CCT)
3000K/4000K/6500K
Note
PS/UGR<19 on request
PROTECTION AND CONSTRUCTION
Ingress protection
IP40
Safety class
Class II
MOUNTING VERSION
Surface
With frame
Suspended
yes
Recessed
yes
WARRANTY CONDITIONS
Lifespan
50 000 h
Warranty
3 years
Ambient temperature
-10 ~40°C
Storage temperature
-20 ~60°C
STANDARDS
Harmonics
EN 61000-3-2
EMC Immunity
EN 61547
Conducted Emission Test
EN 55015
Luminaires
ЕN 60598-1
LED Luminaire performance
ЕN 62722-2-1
Photobiological safety
EN 62471

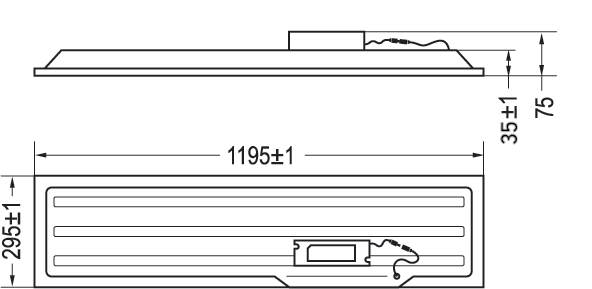

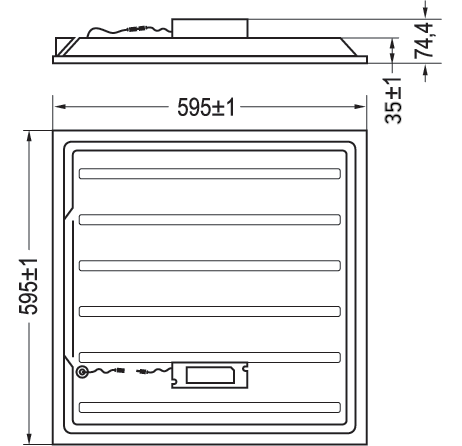

Diagrams & Pictures
